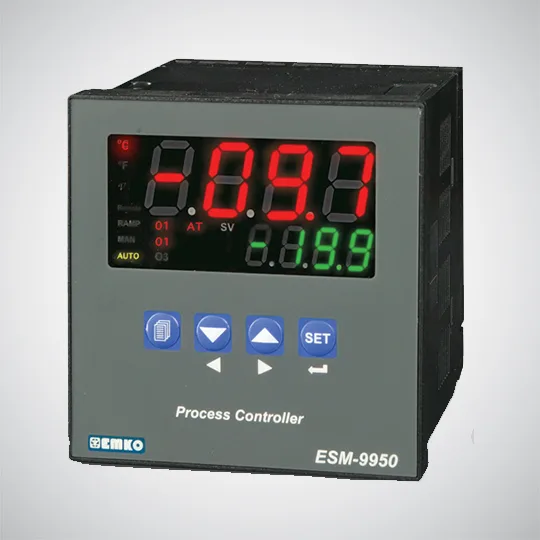

ESM-XX50

PID process controller. 4-digit process (PV) and 4-digit set (SV) display. Universal process input (TC, RTD, mV, V, mA) with optional secondary sensor input. Smart I/O module system. ON/OFF, P, PI, PD and PID control with Auto-tune and Self-tune.

• 4 digits process (PV) and 4 digits process set (SV) display
• Universal process input (TC, RTD, mV, V, mA)
• Optional secondary sensor input
• Smart I/O module system
• Dual or multi point calibration for Voltage / Current input
• Configurable ON/OFF, P, PI, PD and PID control forms
• Adaptation of PID coefficients to the system with Auto-tune and Self-tune
• Programmable heating, cooling and alarm functions for control outputs
• Remote set point function by using analogue input modules
• Retransmission of process value or process control by using 0/4…20 mAdc Current Output Module
• RS-232 (standard) or RS-485 (optional) serial communication with Modbus RTU protocol
