LV VFD (Inverter)

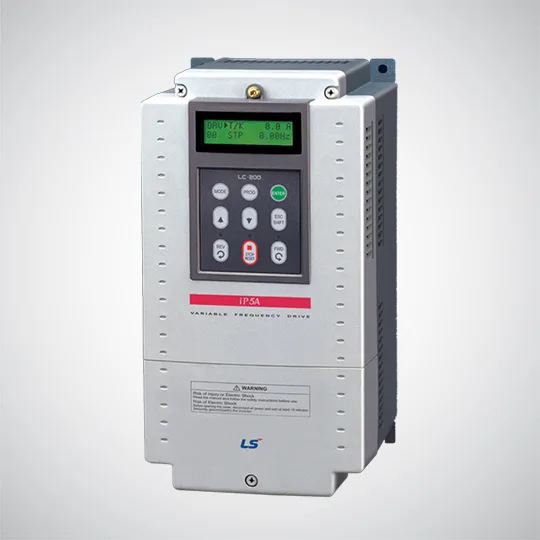

iP5A
Fan & pump specialised VFD. Recommended for fan & pump applications and multi-motor control.
- Fan & Pump Applications
- Multi-Motor Control
| Category | Motor Drives |
|---|---|
| Type | LV VFD (Inverter) |
| Brand | LS Electric |
Product details
- Advanced PID control (Pre-PID, Dual PID)
- Selectable V/f, sensorless vector
- Energy saving & high efficiency: Sleep & Wake-up function, Flying Starting function, Automatic energy saving function, Flux braking algorithm
- Multi Motor Control (up to 4 motors)
- Improved protection functions: Pre-heater function, Low leakage PWM, Safety stop function
- Built-in RS485 (LS Bus) communication
- Communication options: Modbus RTU, Profibus-DP, DeviceNet, LonWorks, BACnet, Mod bus TCP
Additional information
| iP5A-2 | Input rating: Three phase, 200V~230V, 50/60Hz Output rating: Three phase, 200~230V, 0.75~30KW, 0.1~400Hz |
|---|---|
| iP5A-4 | Input rating: Three phase, 380V~480V, 50/60Hz Output rating: Three phase, 380~480V, 0.75~450KW, 0.1~400Hz |
